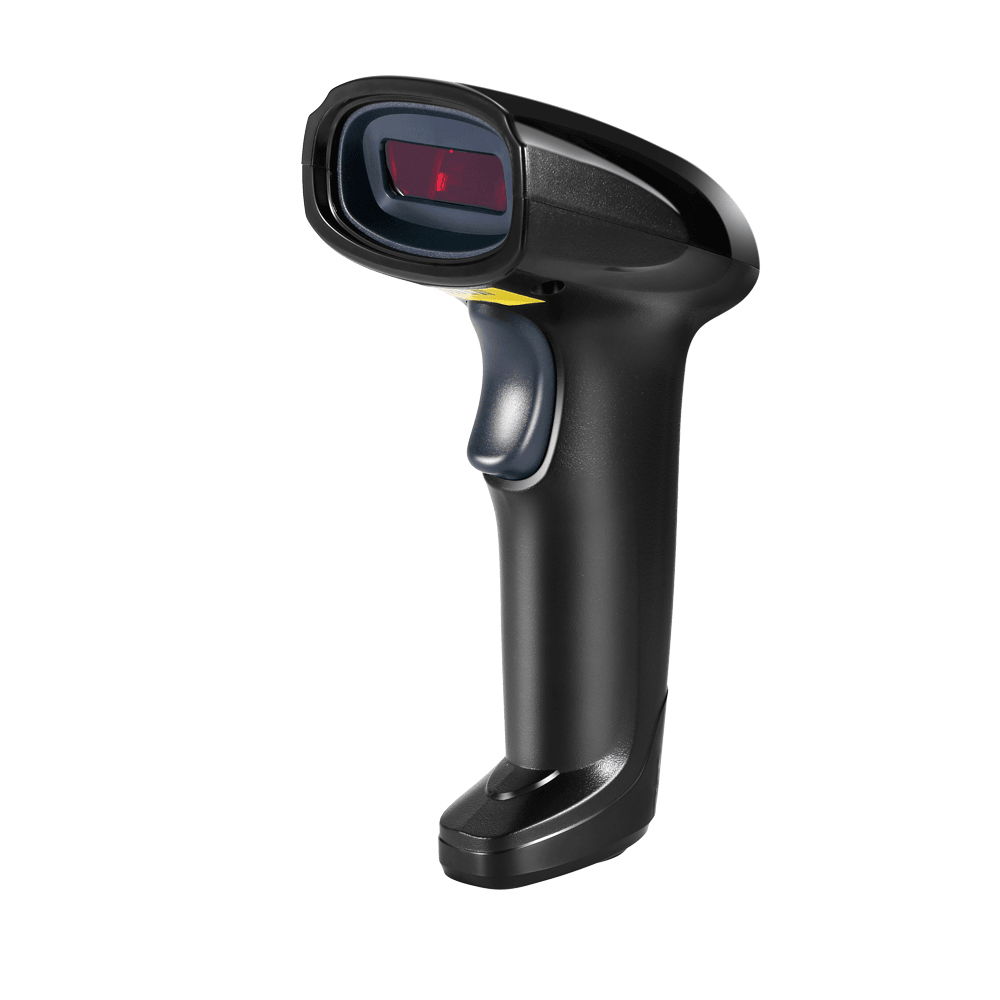

JXH01
Wired 1D laser scanner
Setup guideManual updated 15 September 2026
Scan only the setting you need. Use your scanner, not your phone camera. These settings are alternatives unless a sequence is stated.
Save to your phone: open a group image, then touch and hold to save it. A 1D laser scanner may not read an LCD screen; print the image at a clear size if needed.Basics
Choose only the setting you need.
Open / save group image ↗Version information
Factory reset

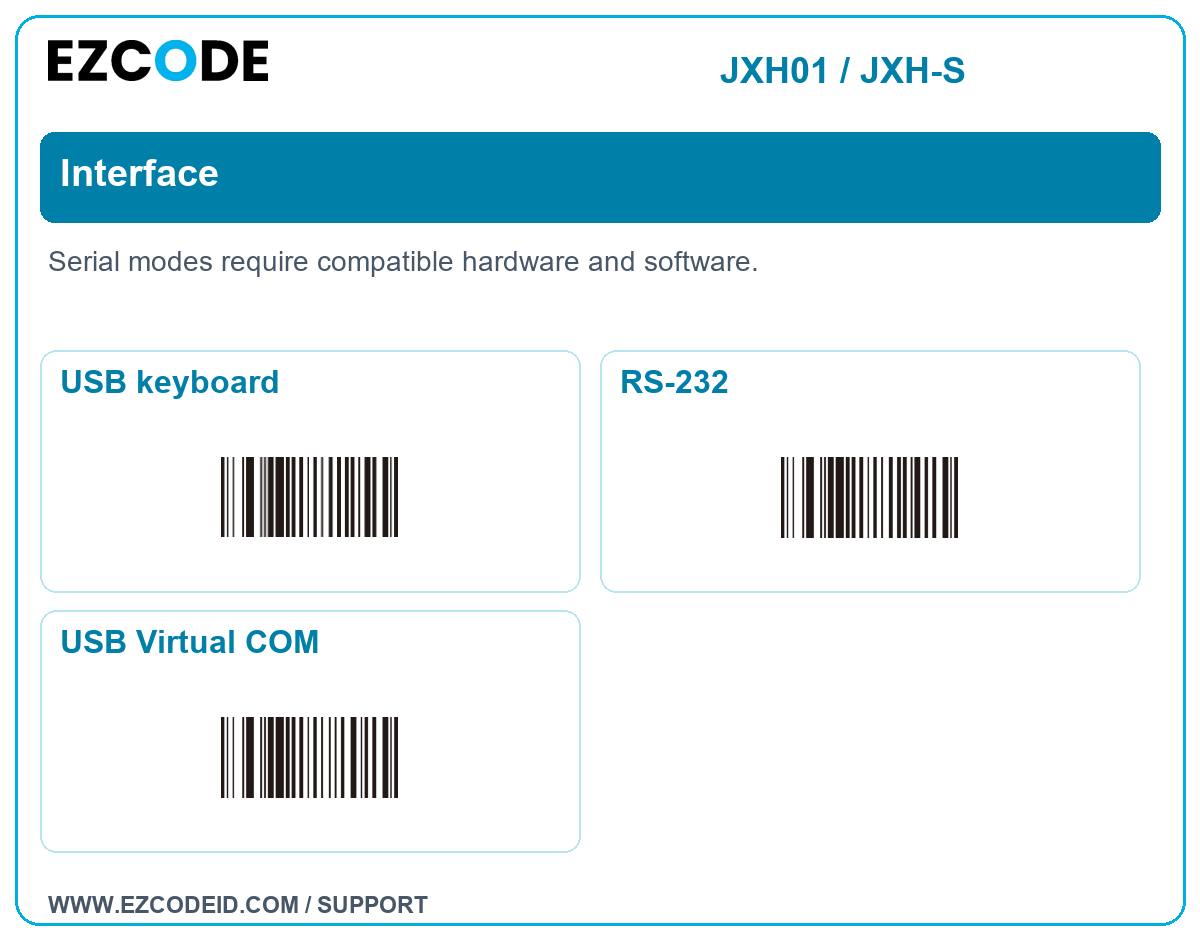

Interface
Serial modes require compatible hardware and software.
Open / save group image ↗USB keyboard
RS-232
USB Virtual COM

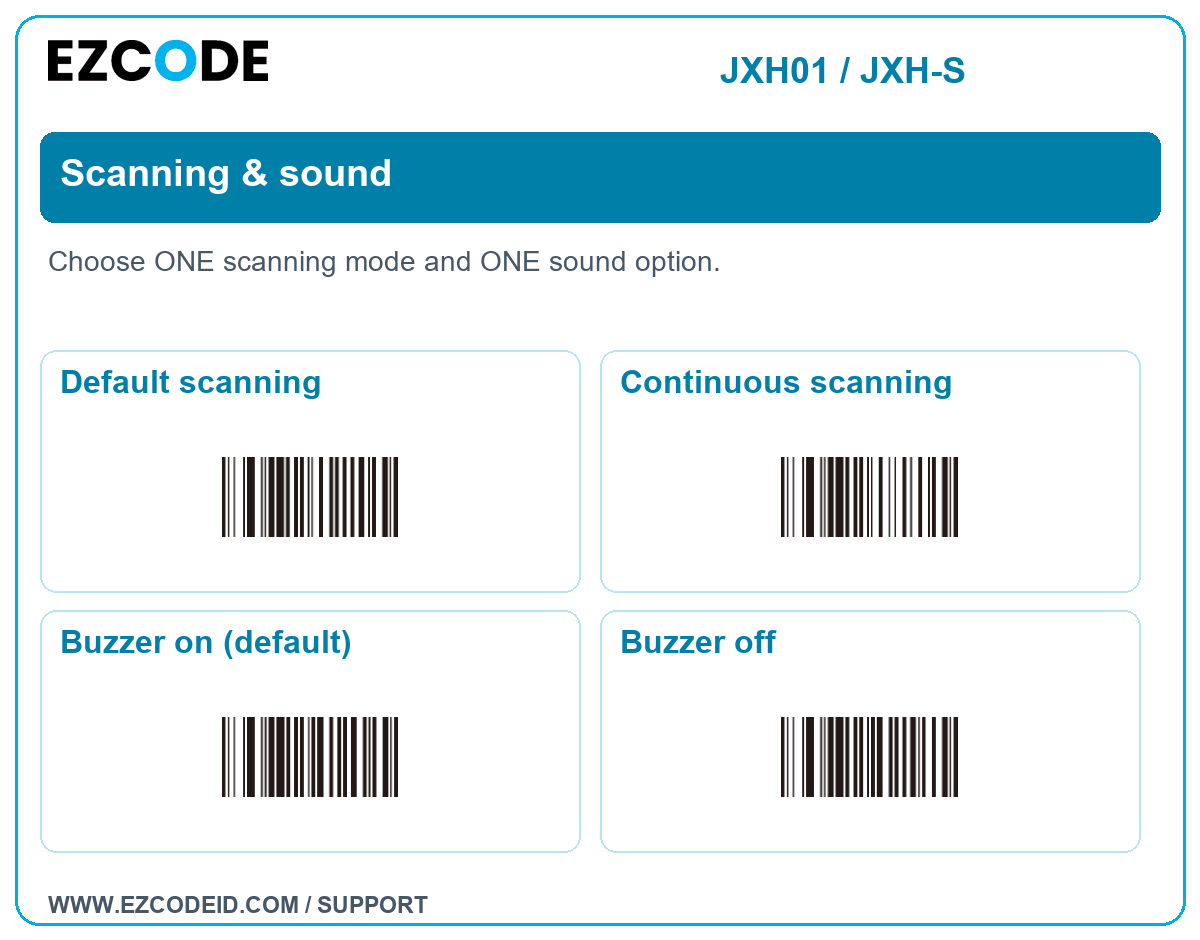

Scanning & sound
Choose ONE scanning mode and ONE sound option.
Open / save group image ↗Default scanning
Continuous scanning
Buzzer on (default)
Buzzer off
← Back to SupportAdvanced settings & character tables
Change barcode formats only when required by your application. For custom text, enter the prefix/suffix setting, scan the required characters in order, then scan the exit/quit code. Clearing or hiding characters changes the data sent to your software.

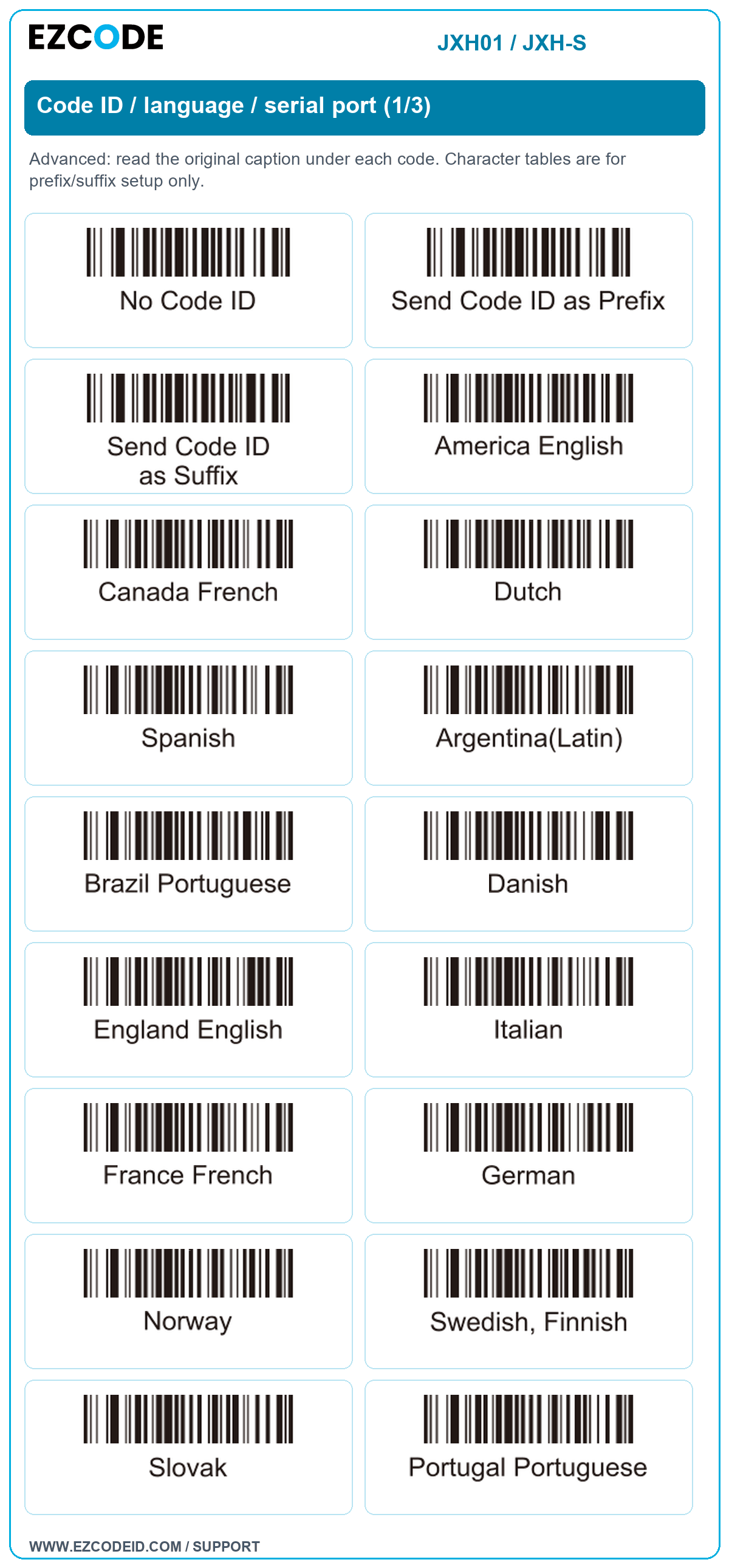

Code ID / language / serial port (1/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

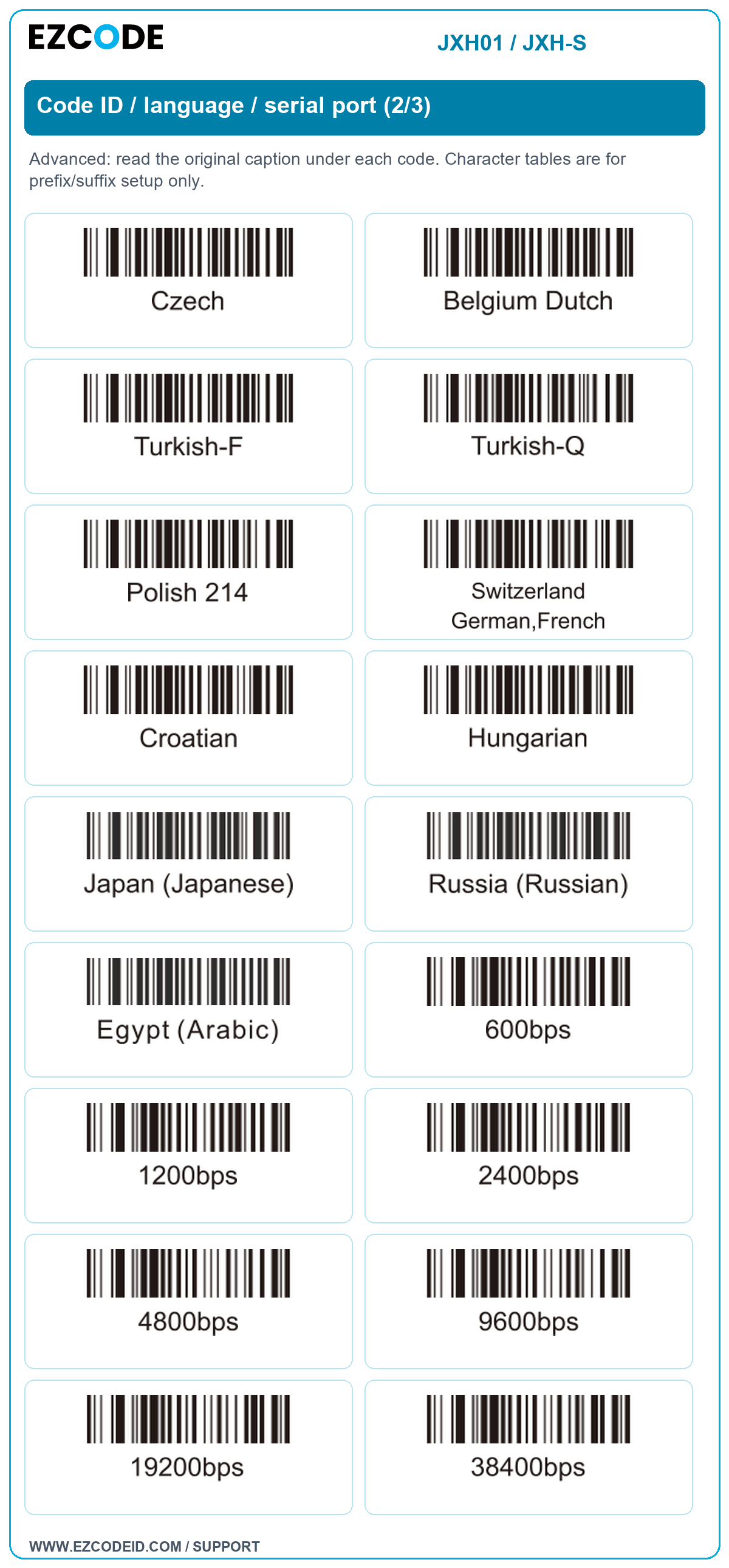

Open / save group image ↗Code ID / language / serial port (2/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

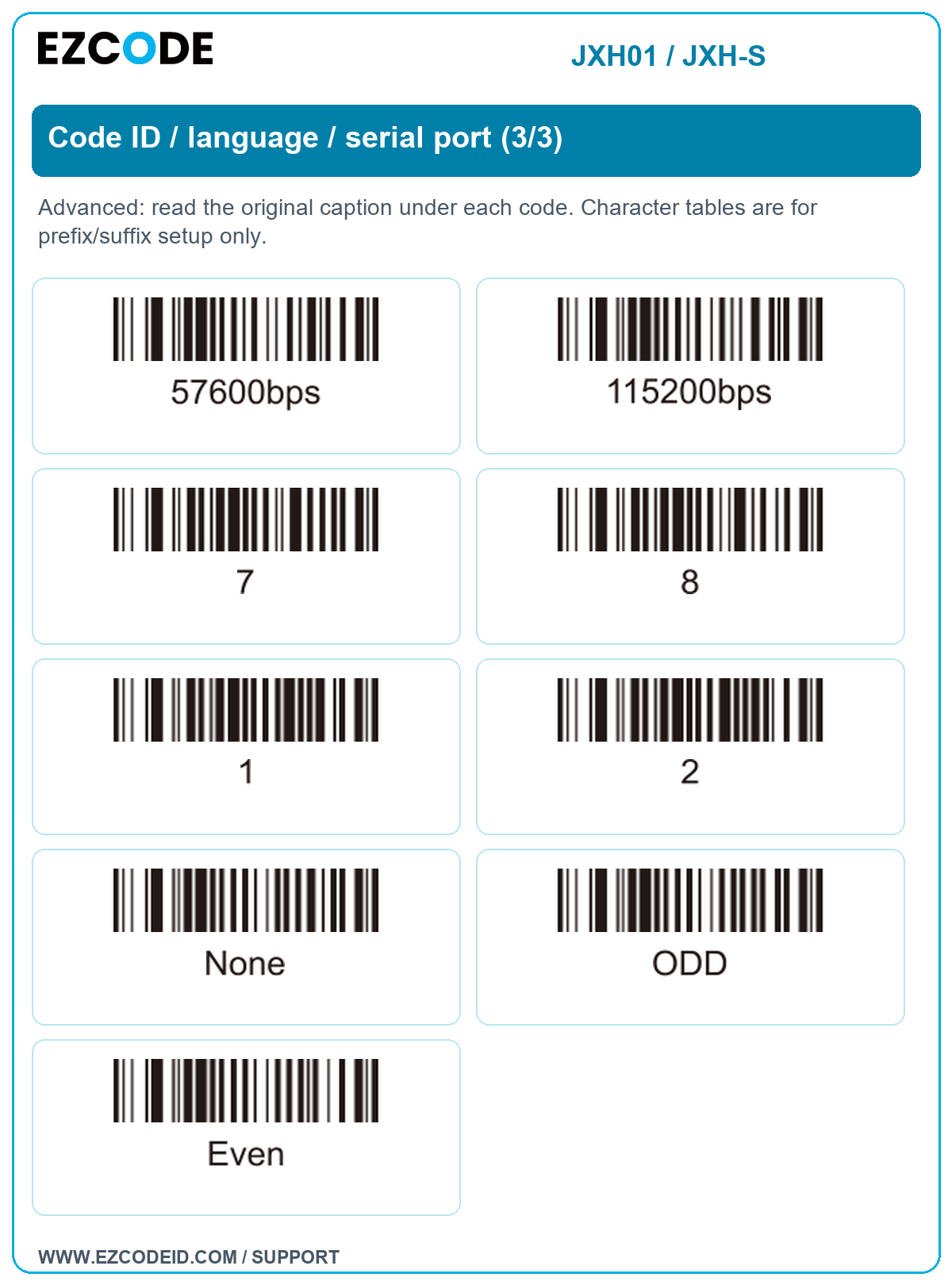

Open / save group image ↗Code ID / language / serial port (3/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

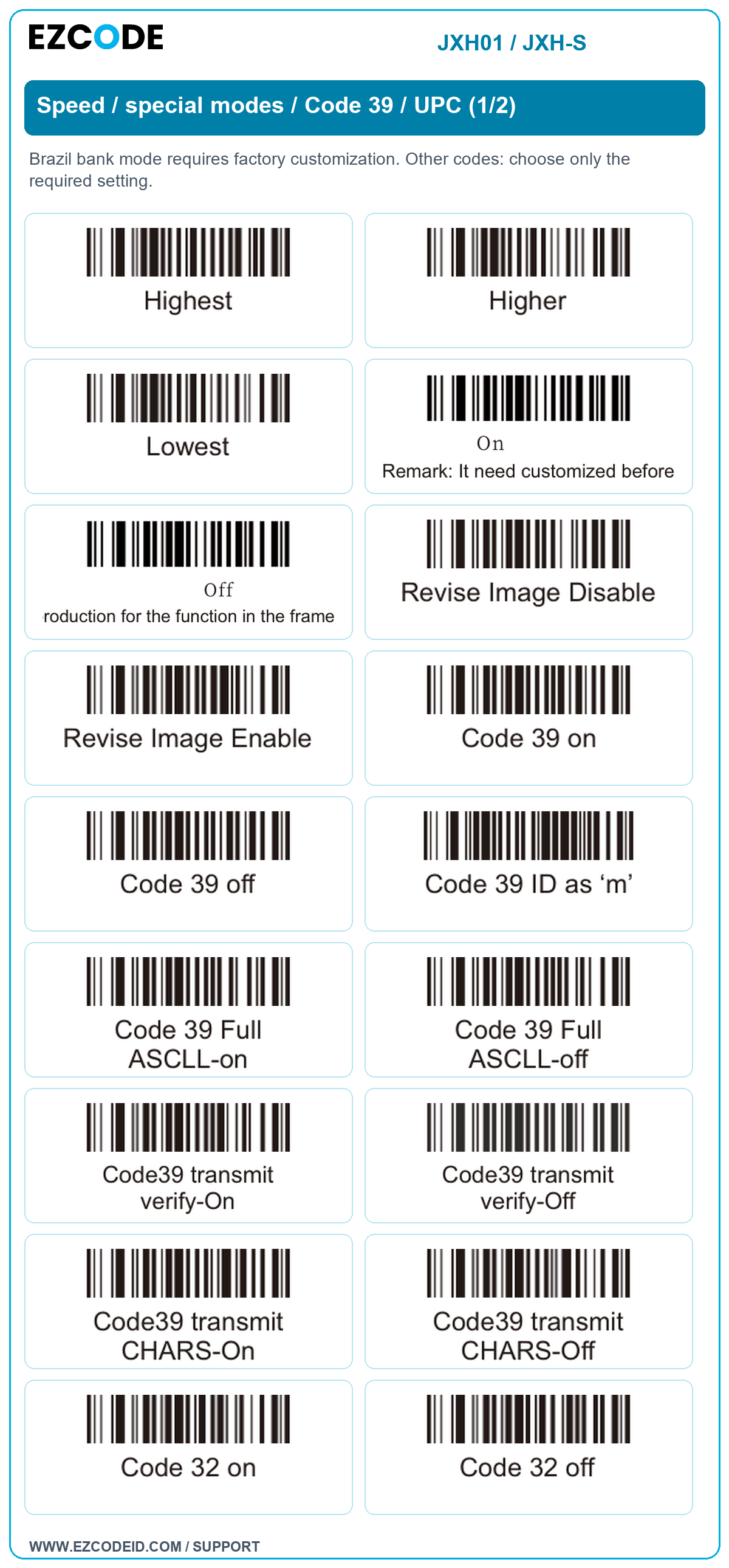

Open / save group image ↗Speed / special modes / Code 39 / UPC (1/2)
Brazil bank mode requires factory customization. Other codes: choose only the required setting.

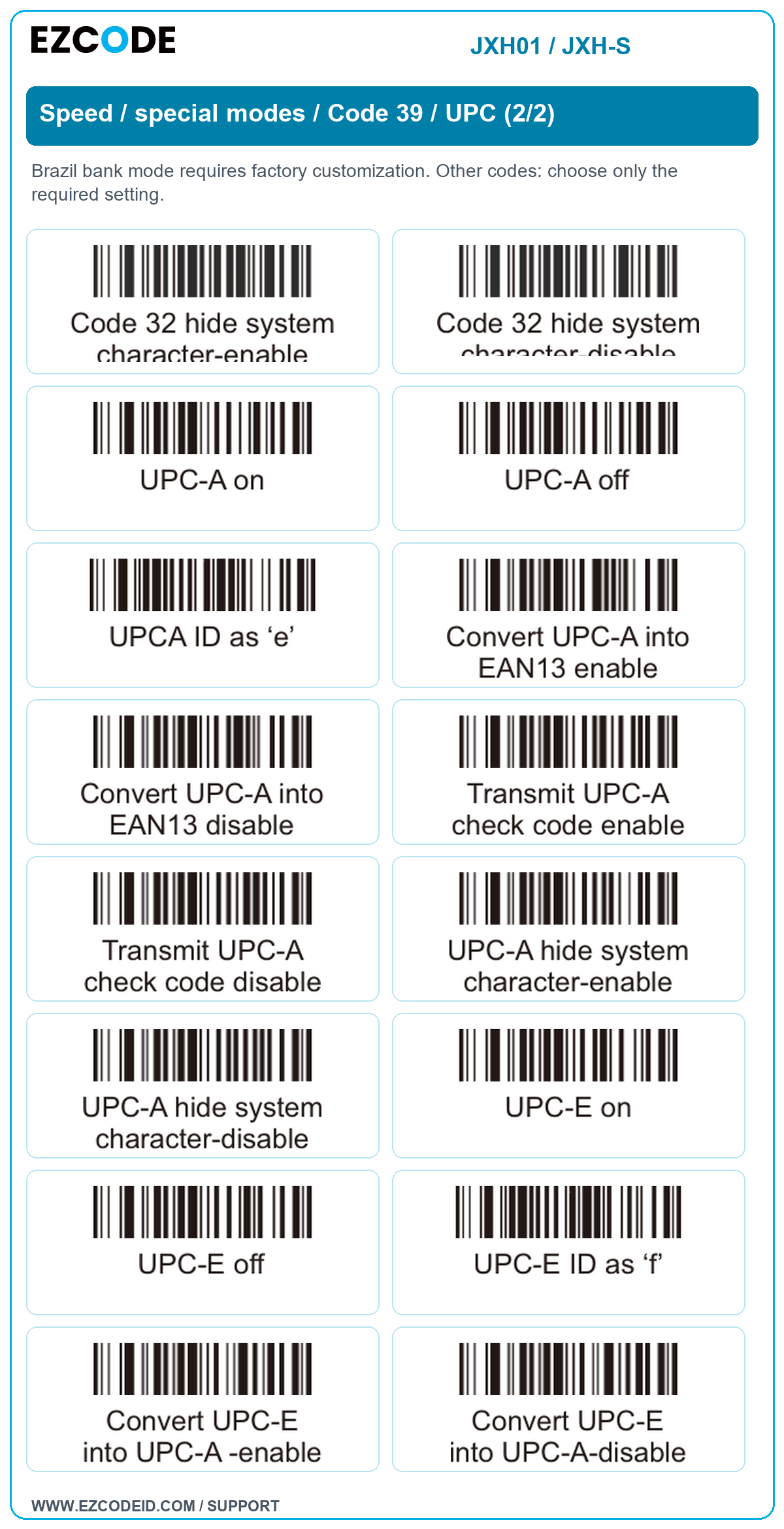

Open / save group image ↗Speed / special modes / Code 39 / UPC (2/2)
Brazil bank mode requires factory customization. Other codes: choose only the required setting.

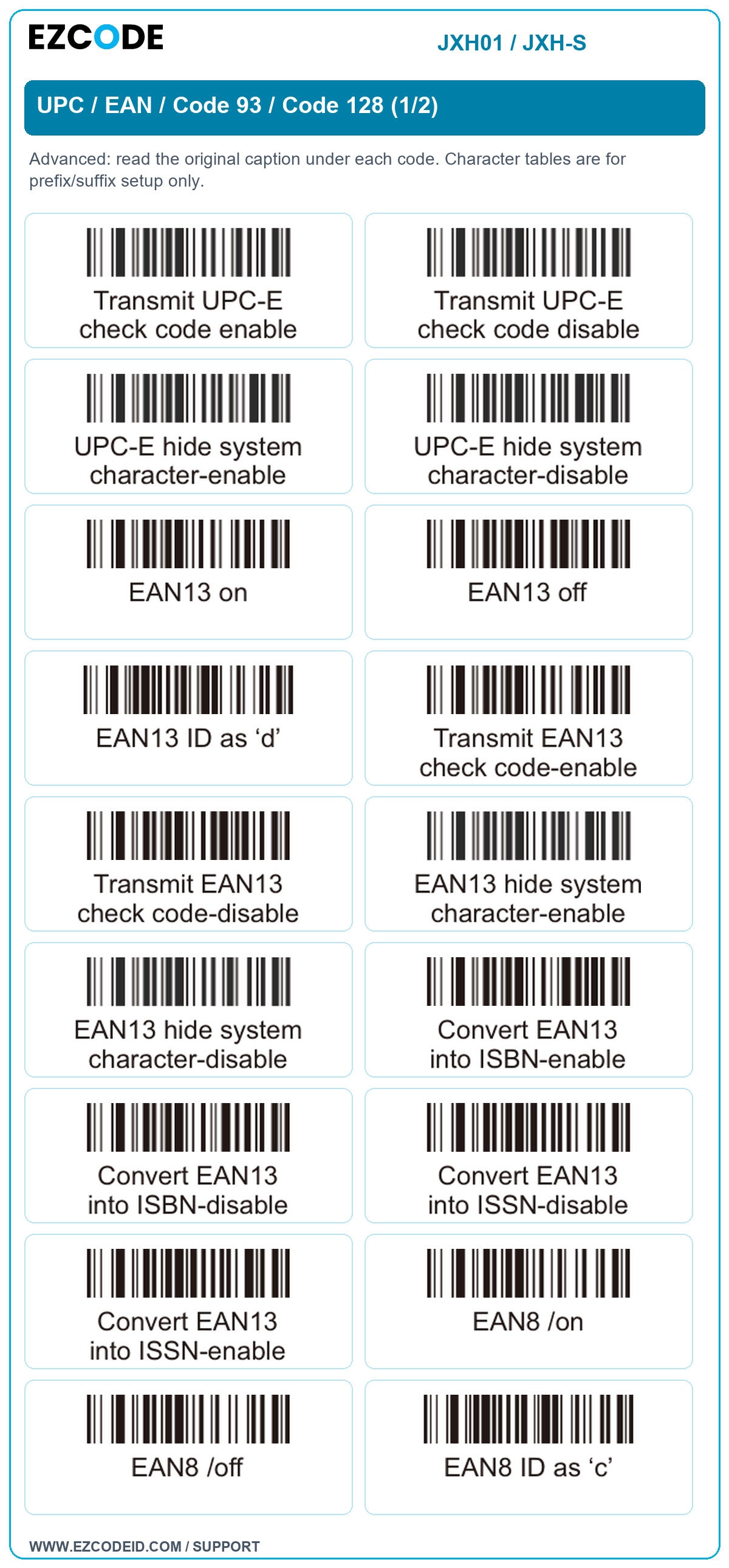

Open / save group image ↗UPC / EAN / Code 93 / Code 128 (1/2)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

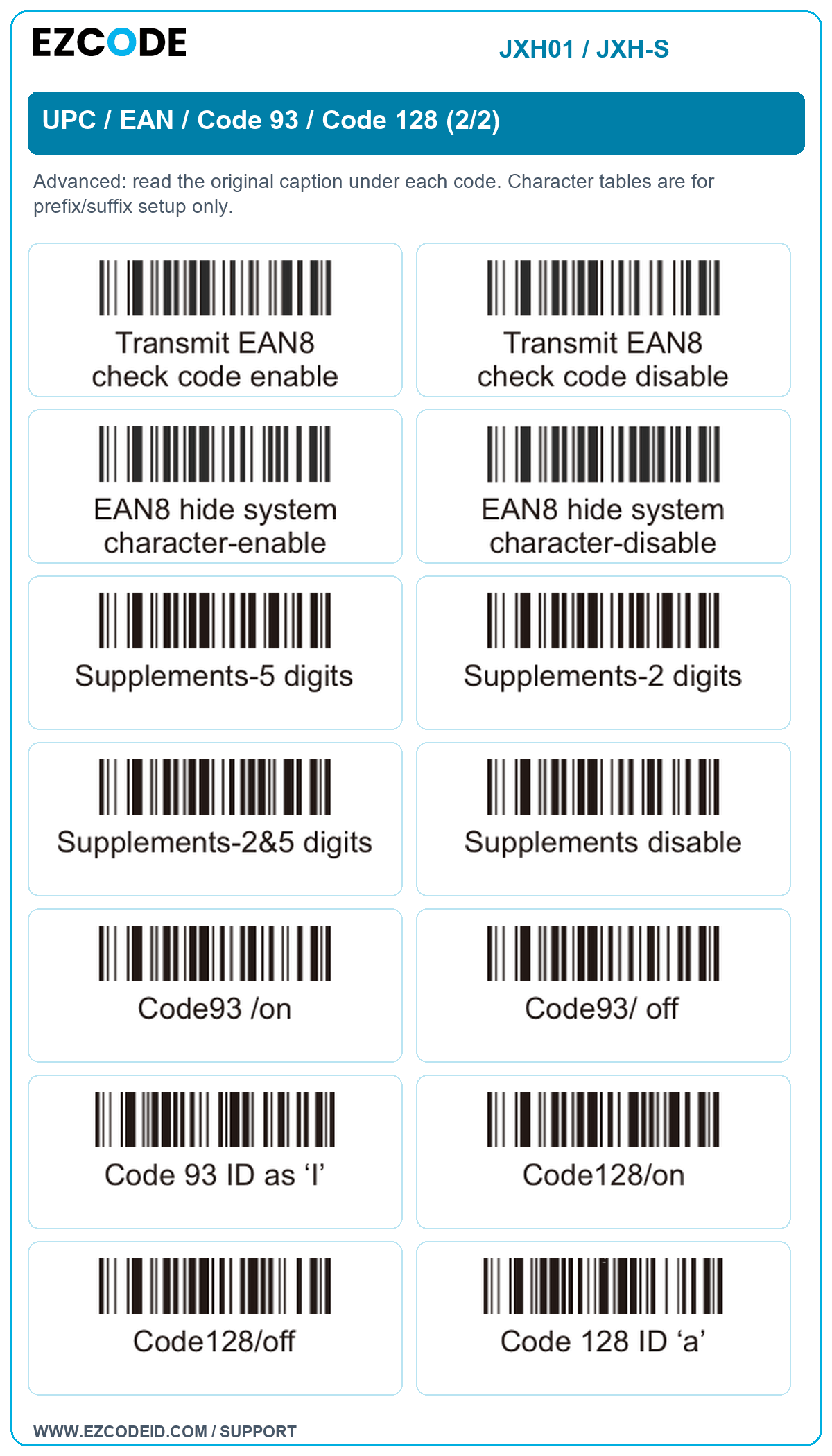

Open / save group image ↗UPC / EAN / Code 93 / Code 128 (2/2)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

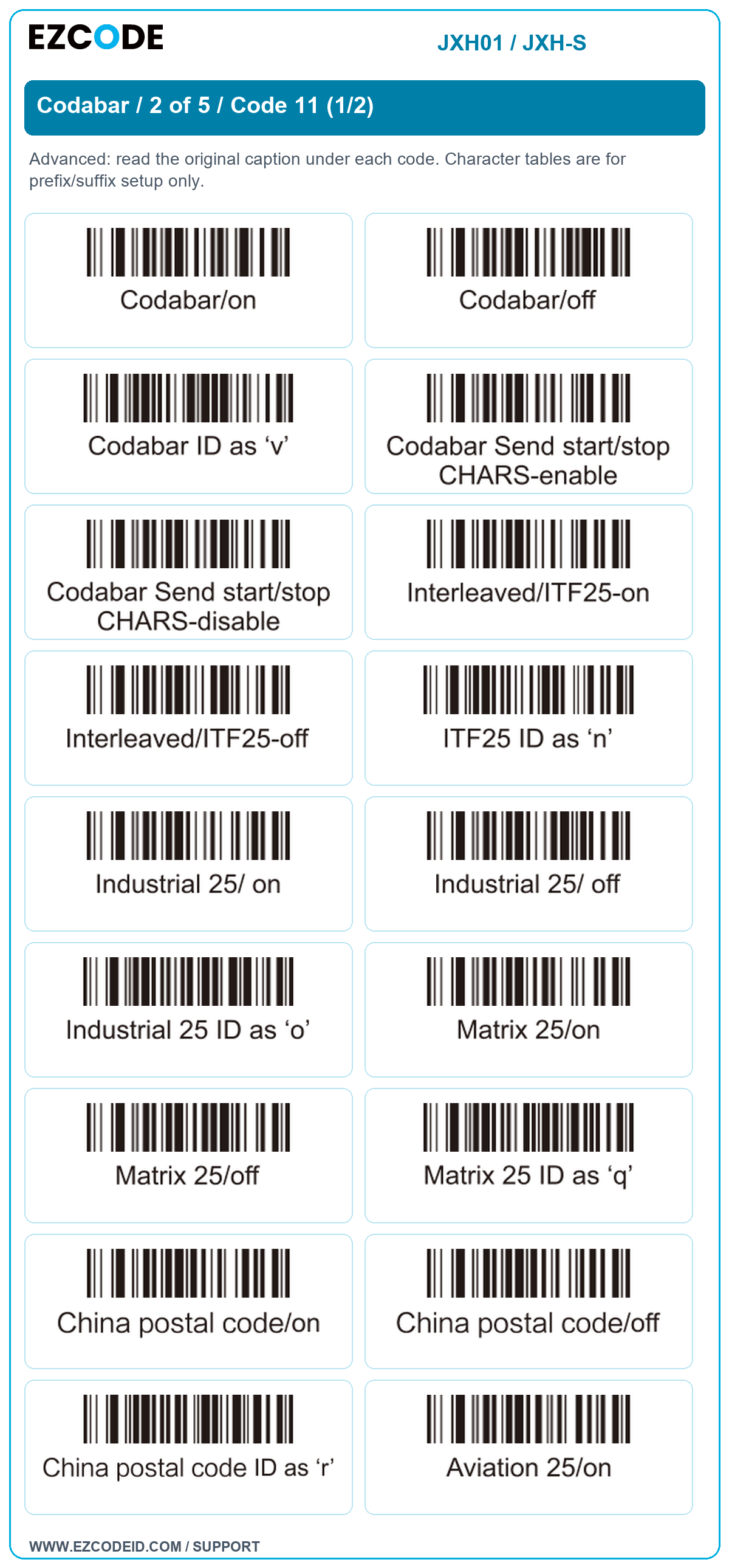

Open / save group image ↗Codabar / 2 of 5 / Code 11 (1/2)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

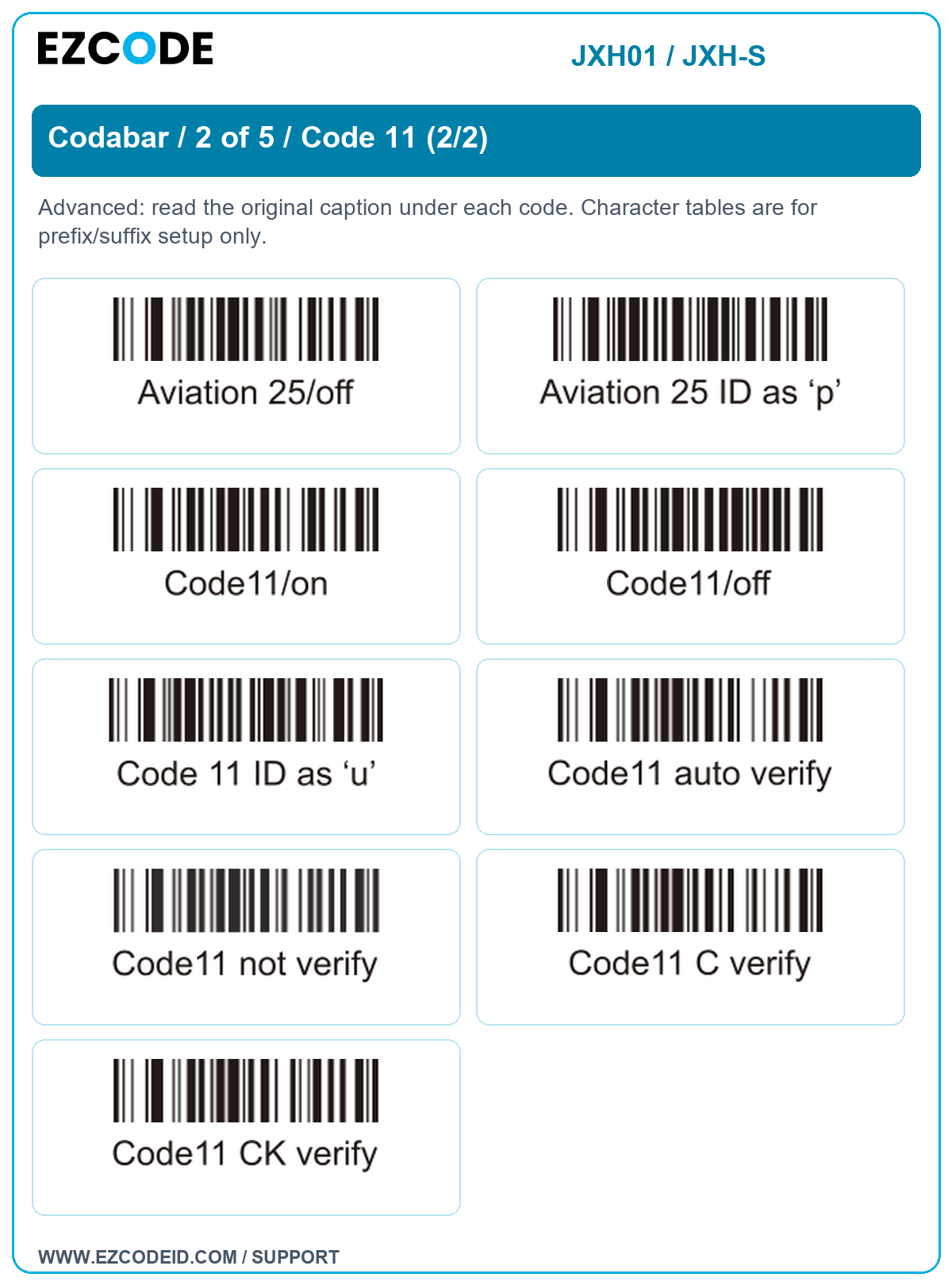

Open / save group image ↗Codabar / 2 of 5 / Code 11 (2/2)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

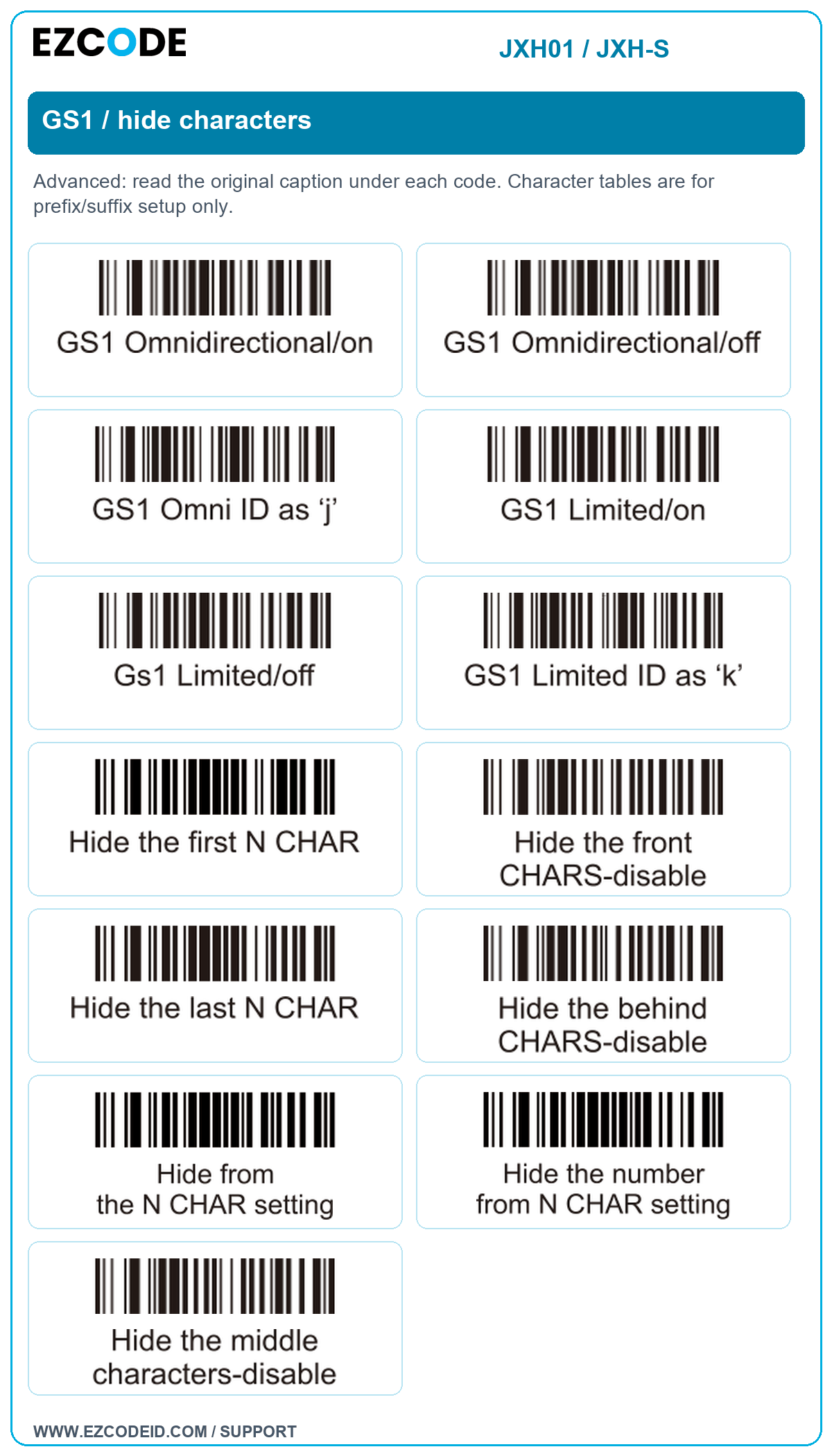

Open / save group image ↗GS1 / hide characters
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

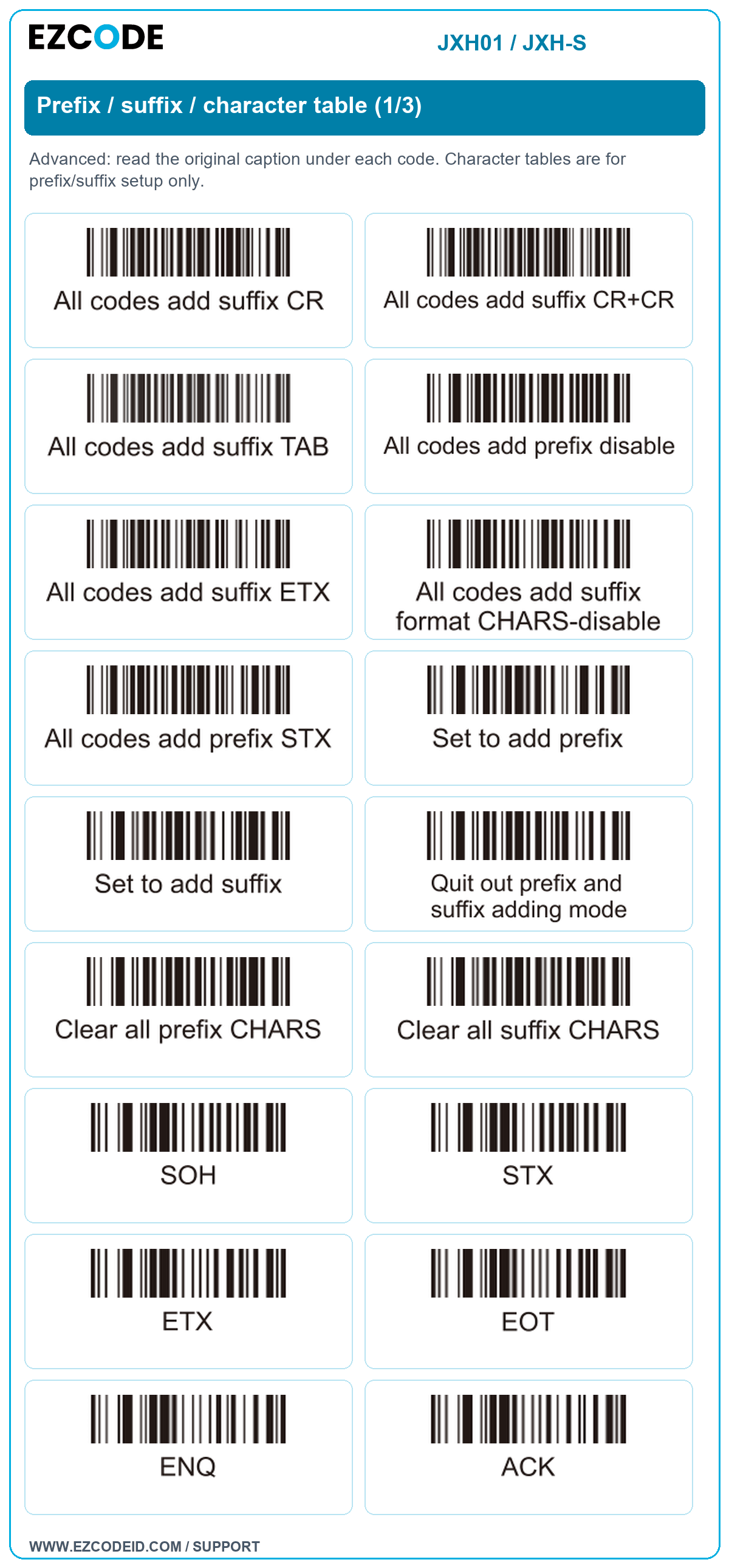

Open / save group image ↗Prefix / suffix / character table (1/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

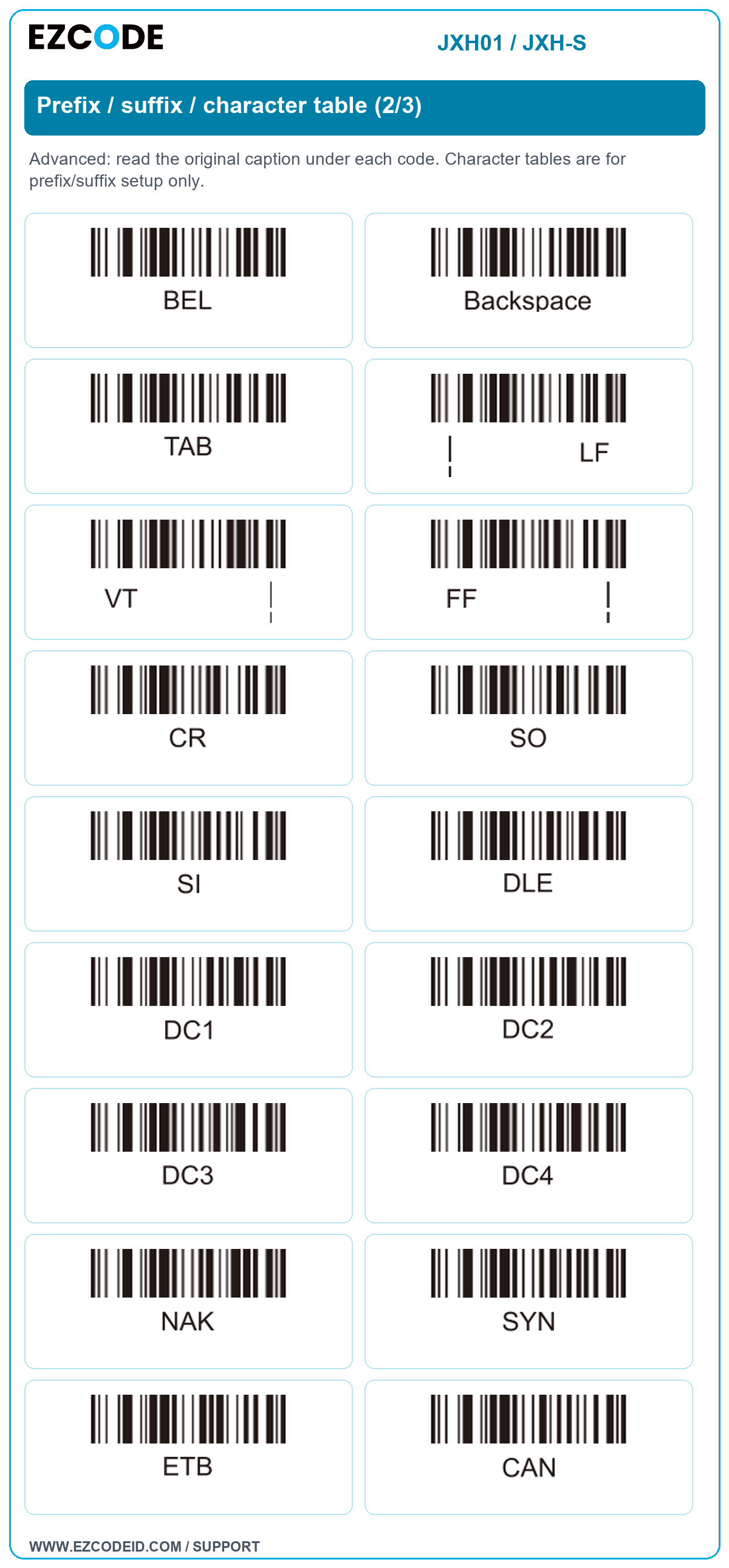

Open / save group image ↗Prefix / suffix / character table (2/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

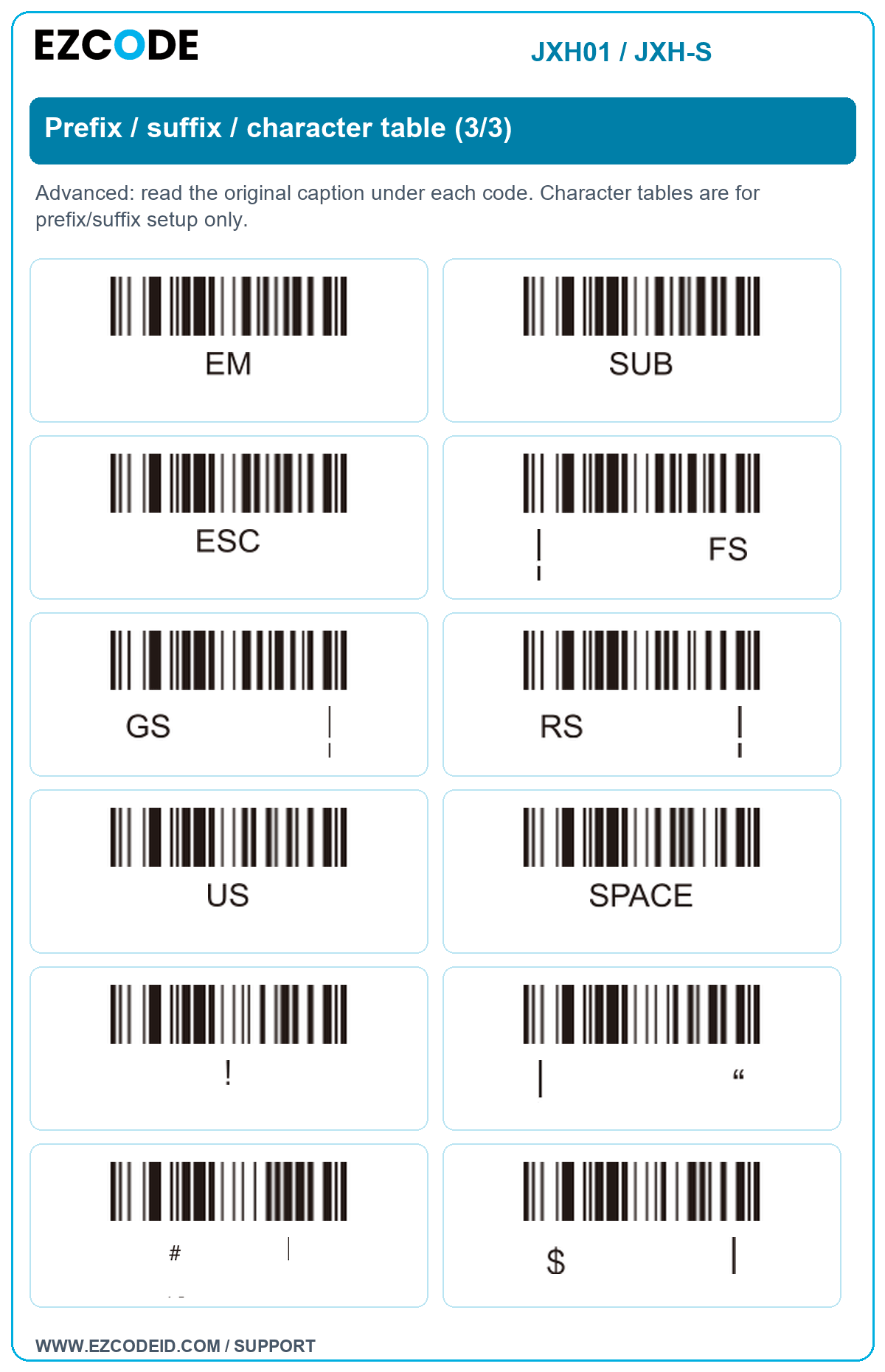

Open / save group image ↗Prefix / suffix / character table (3/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

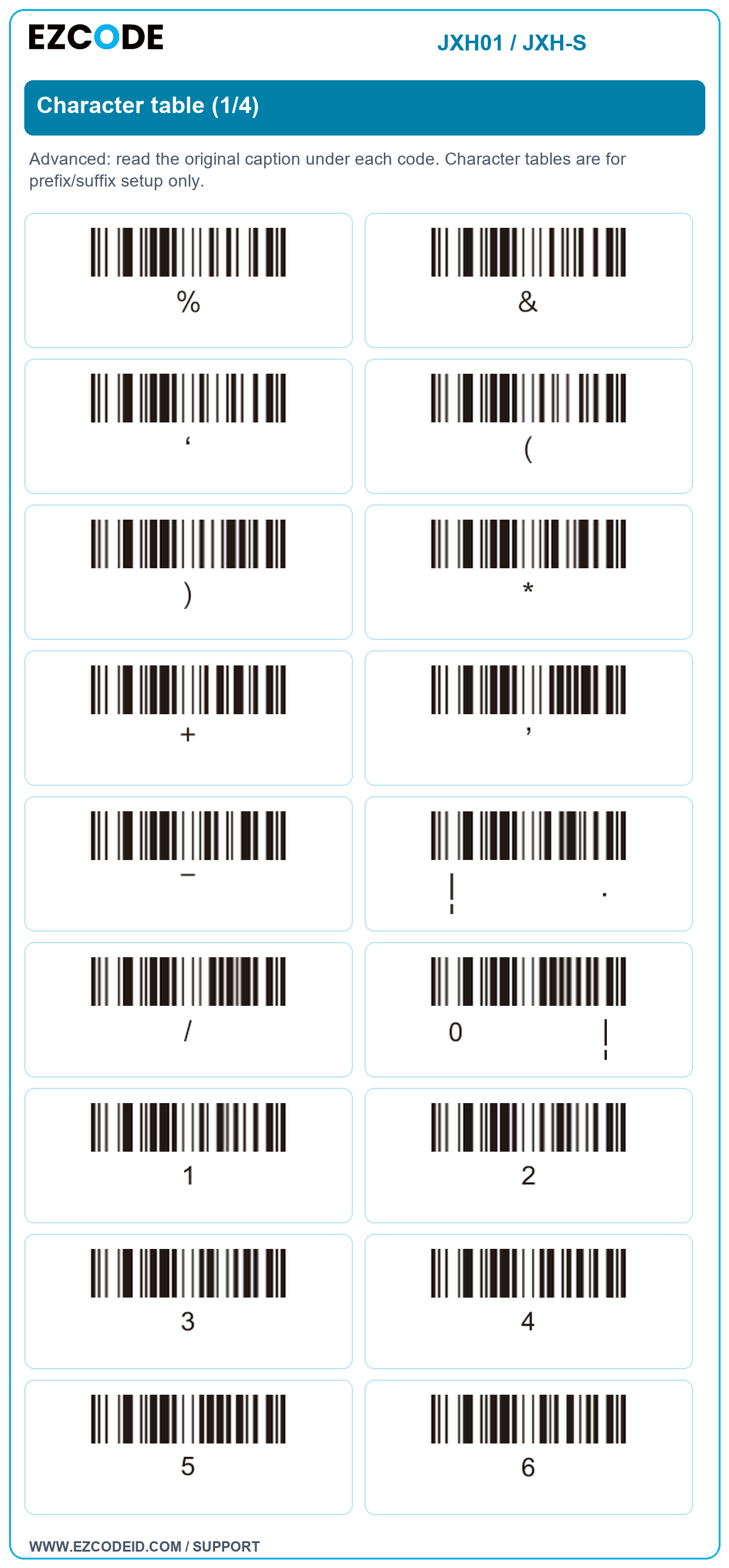

Open / save group image ↗Character table (1/4)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

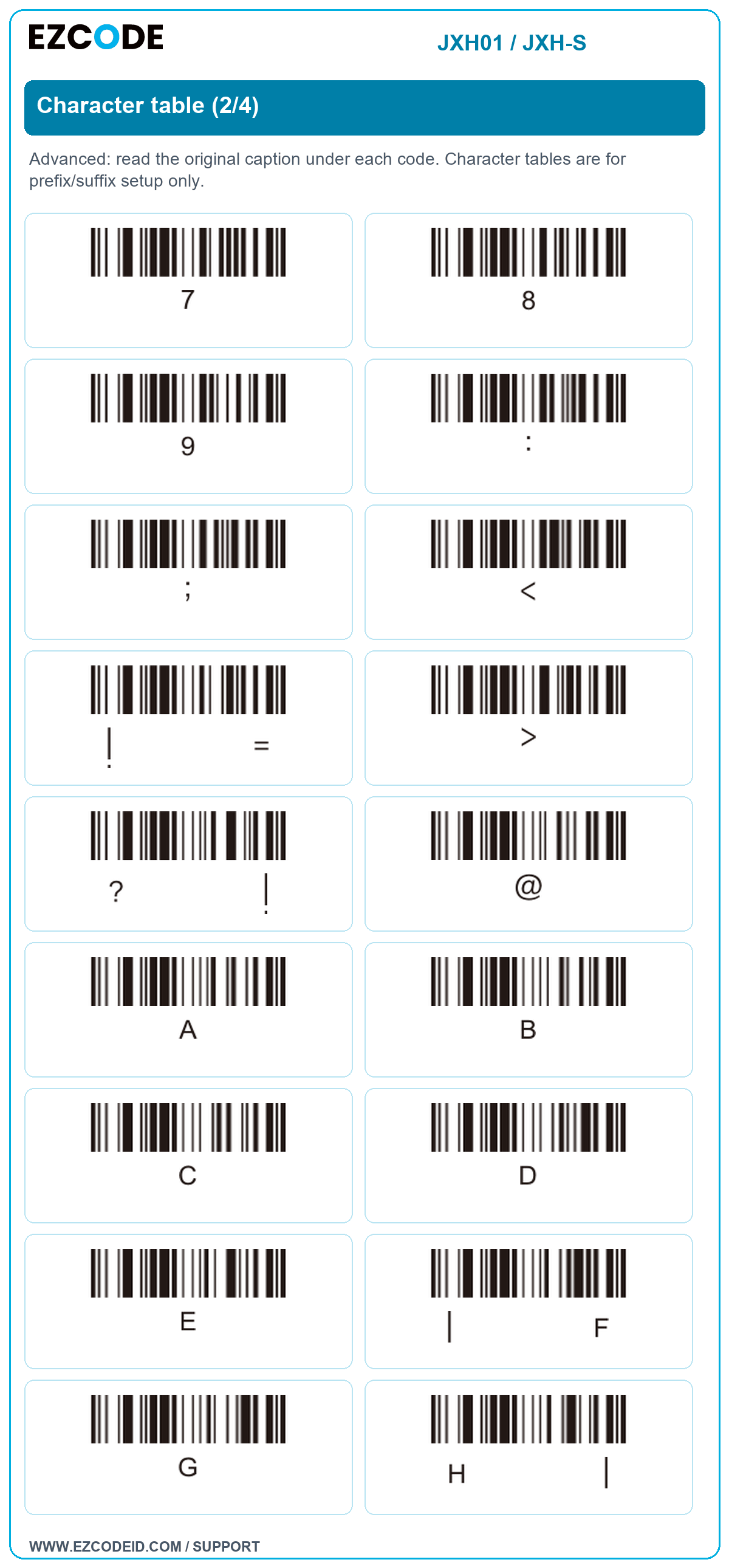

Open / save group image ↗Character table (2/4)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

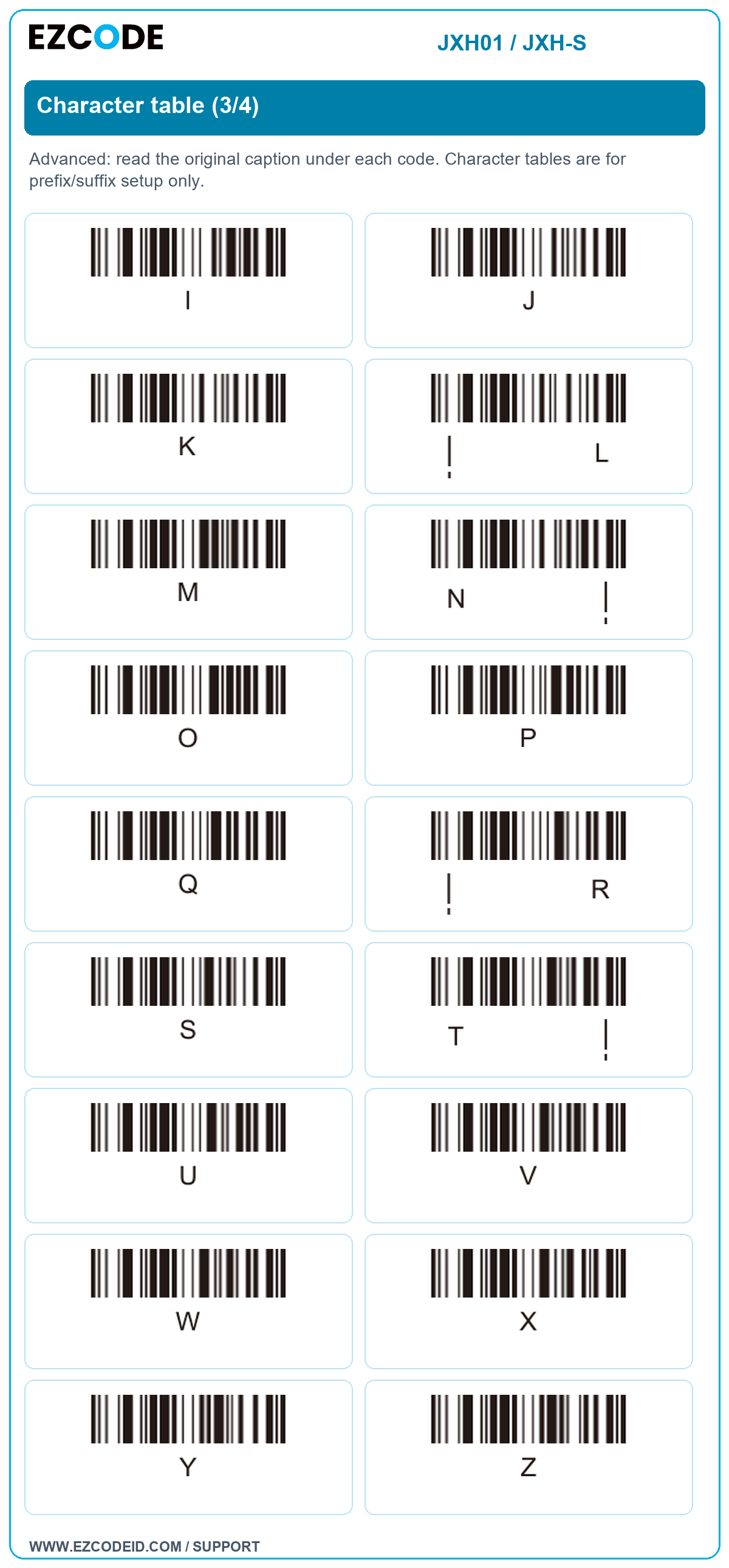

Open / save group image ↗Character table (3/4)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

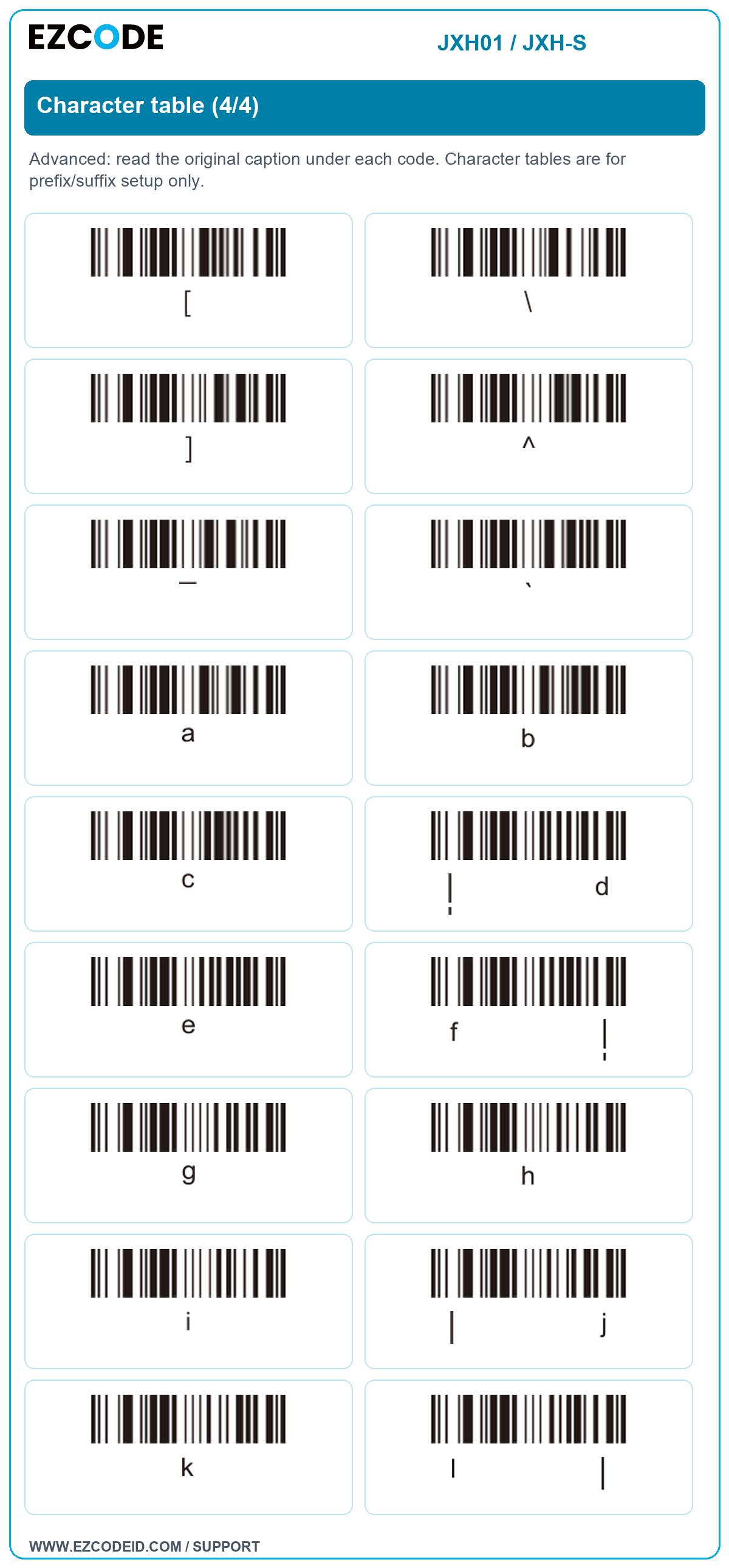

Open / save group image ↗Character table (4/4)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

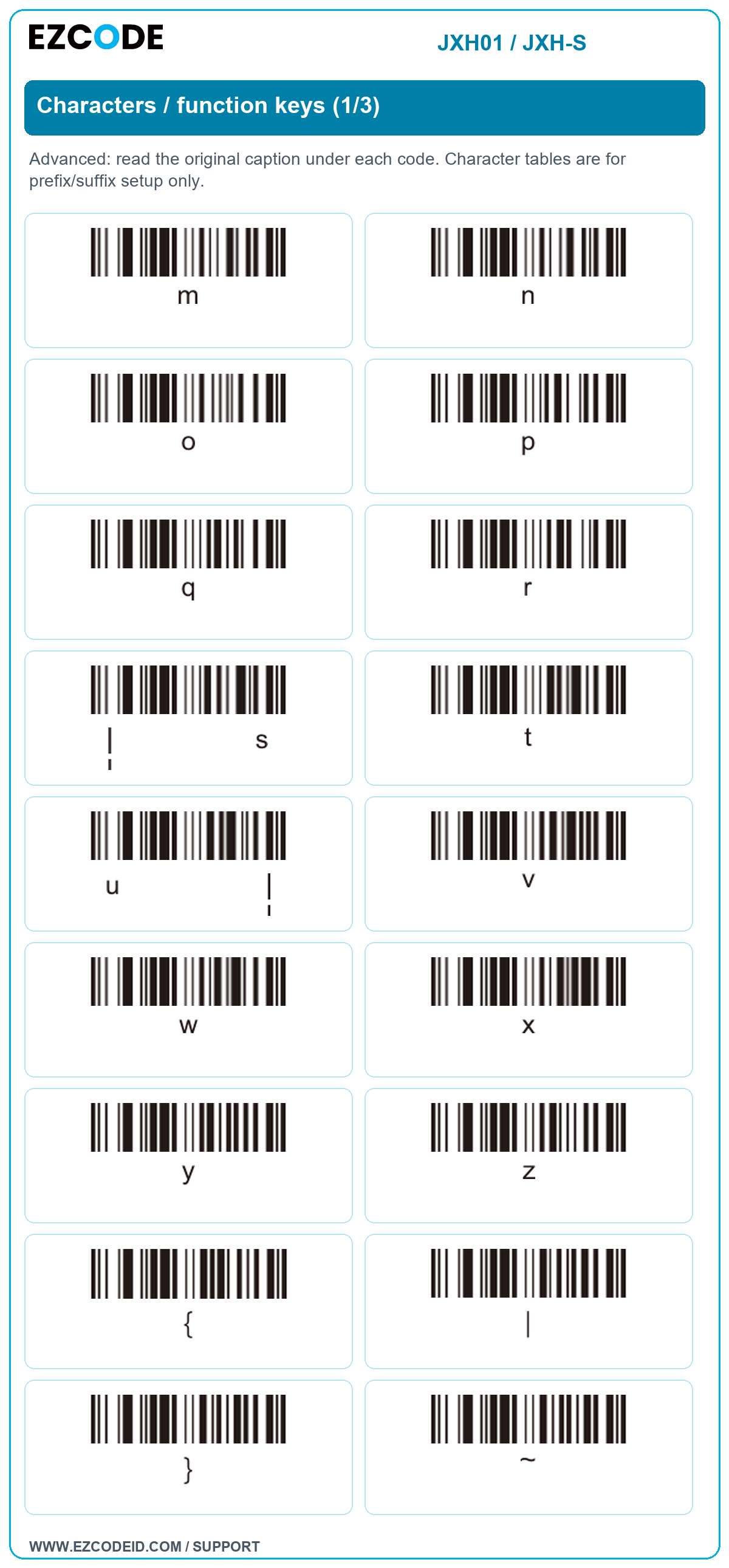

Open / save group image ↗Characters / function keys (1/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

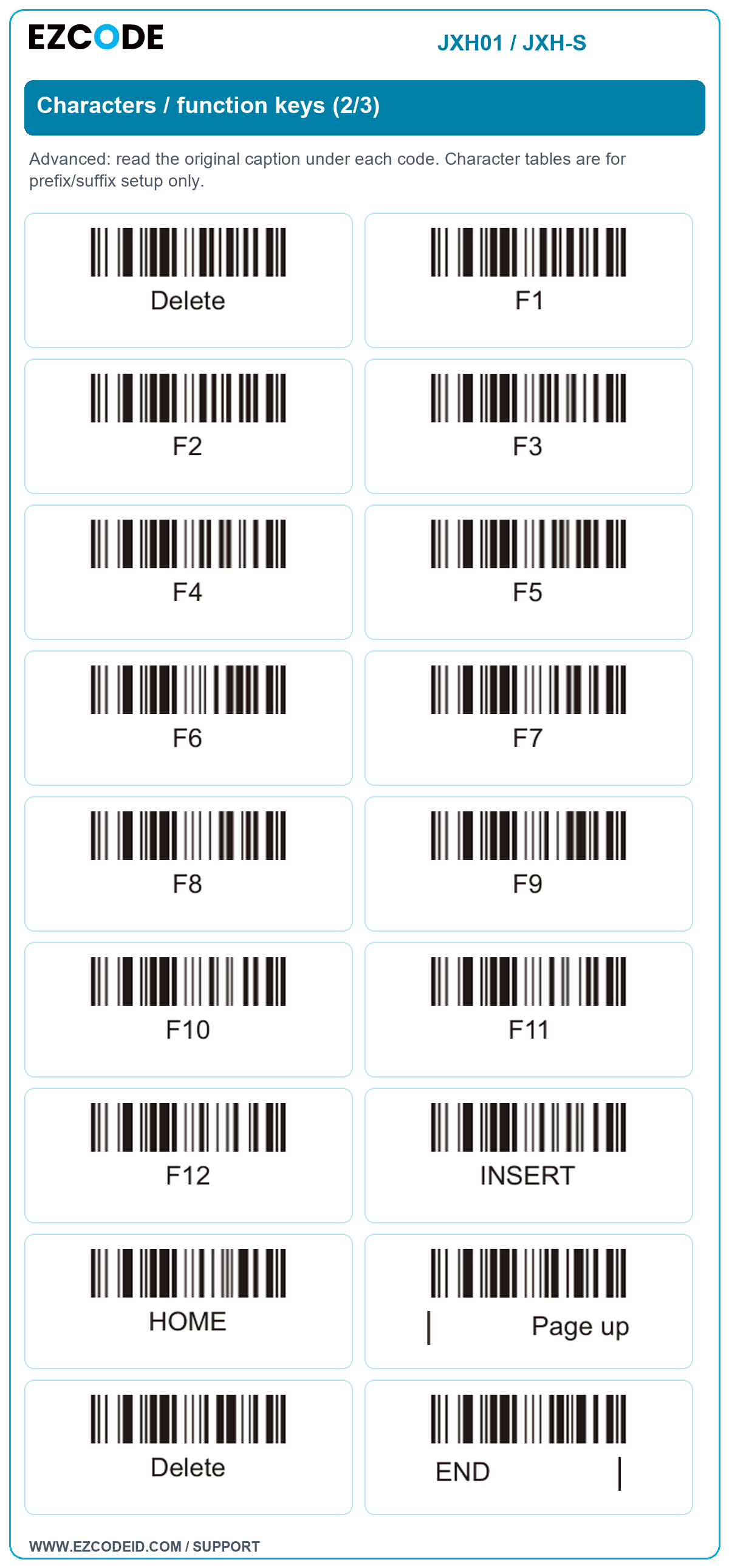

Open / save group image ↗Characters / function keys (2/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.

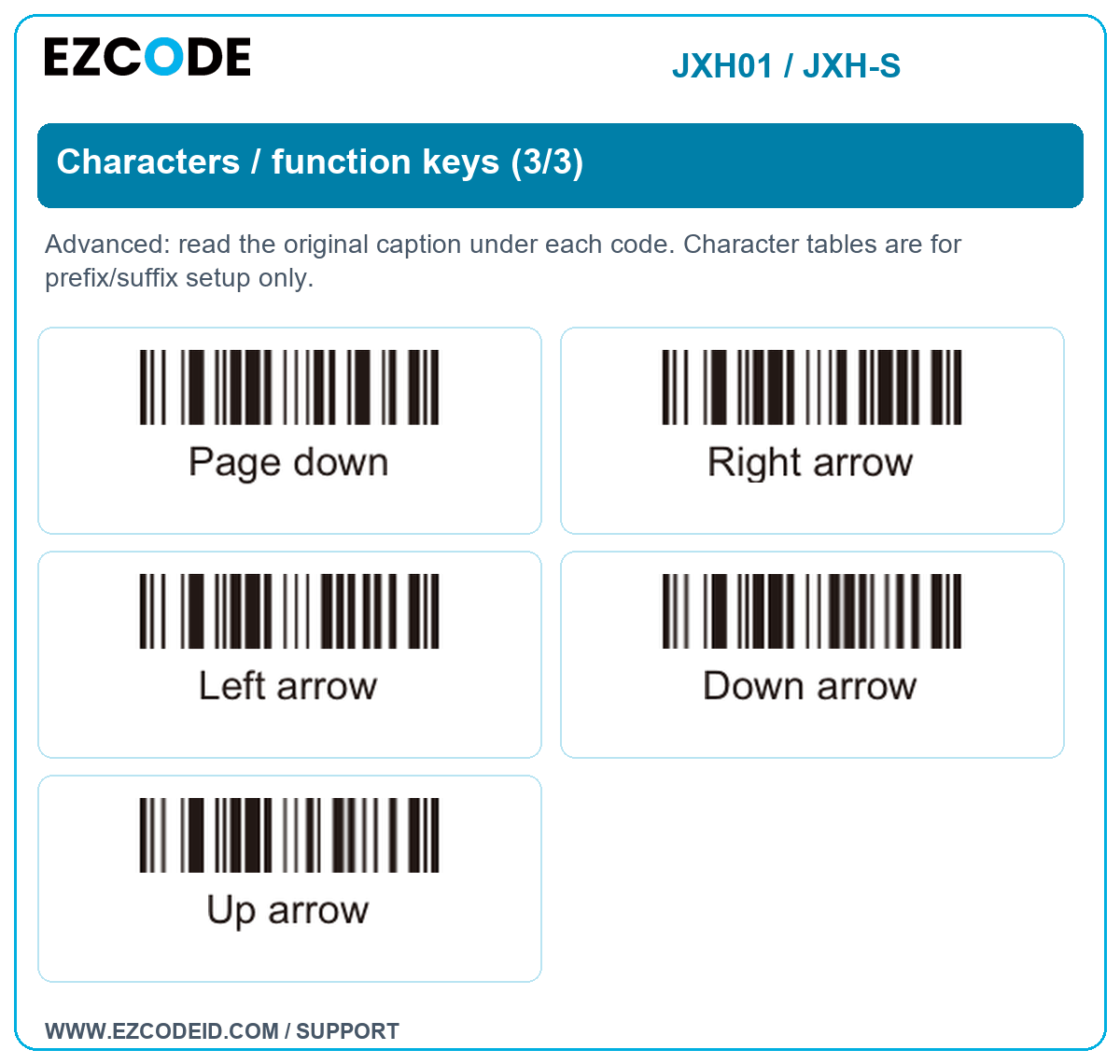

Open / save group image ↗Characters / function keys (3/3)
Advanced: read the original caption under each code. Character tables are for prefix/suffix setup only.
Open / save group image ↗
